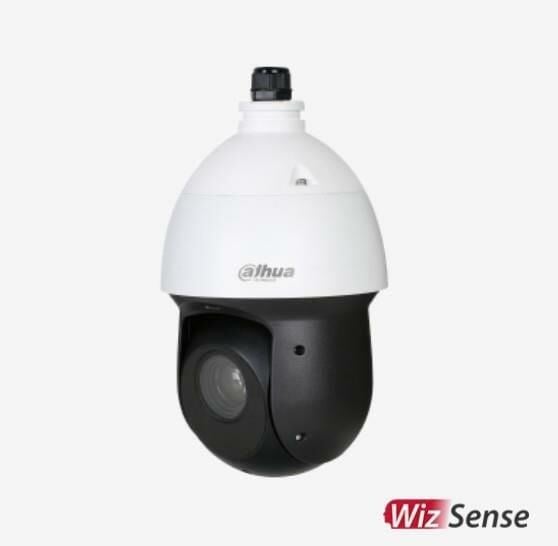

DAHUA SD49225XA-HNR 2MP IP IR PTZ KAMERA (SD49225XA)

Camera

Image Sensor

1/2.8" STARVIS™ CMOS

Pixel

2MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

4GB

RAM

1GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: [email protected]
B/W: [email protected]
[email protected] (IR light on)

Illumination Distance

100 m (328.08 ft)

Illuminator On/Off Control

Zoom Prio/Manual/SmartIR

Illuminator Number

6

Lens

Focal Length

4.8 mm–120 mm

Max. Aperture

F1.6–F4.4

Field of View

H: 62.8°–2.6°; V: 33.2°–1.7°; D: 67.3°–3.9°

Optical Zoom

25x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.1 m–1.5 m (0.33 ft–4.92 ft)

Iris Control

Auto/Manual

DORI Distance

Detect

Observe

Recognize

Identify

1613 m (5291.99 ft)

646 m (2119.42 ft)

323 m (1059.71 ft)

161 m (528.22 ft)

PTZ

Pan/Tilt Range

Pan: 0°–360° (endless)
Tilt: -15°–90° (auto flip 180°)

Manual Control Speed

Pan: 0.1°–200°/s
Tilt: 0.1°–120°/s

Preset Speed

Pan: 240°/s
Tilt: 200°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Speed Adjustment

Support

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D (auto recognition)

General Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

IVS

Object Abandoned/Missing

Artificial Intelligence

Perimeter Protection

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

SMD PLUS

Support

Face Detection

Support

Smart Capture

Support human, motor vehicle and non-motor vehicle image capture.

Video

Compression

H.265+/H.265/H.264+/H.264/MJPEG (sub stream)

Streaming Capability

3 streams

Resolution

1080P (1920 × 1080); 1.3 M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 1080P/1.3 M/720P (1–50/60fps)
Sub stream 1: D1/CIF (1–25/30fps)
Sub stream 2: 1080P/1.3M/720P/D1/CIF (1–25/30fps)

Bit Rate Control

Variable/Constant

Bit Rate

H.265/H.264: 3 kbps–20480 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Support

WDR

120 dB

HLC

Support
